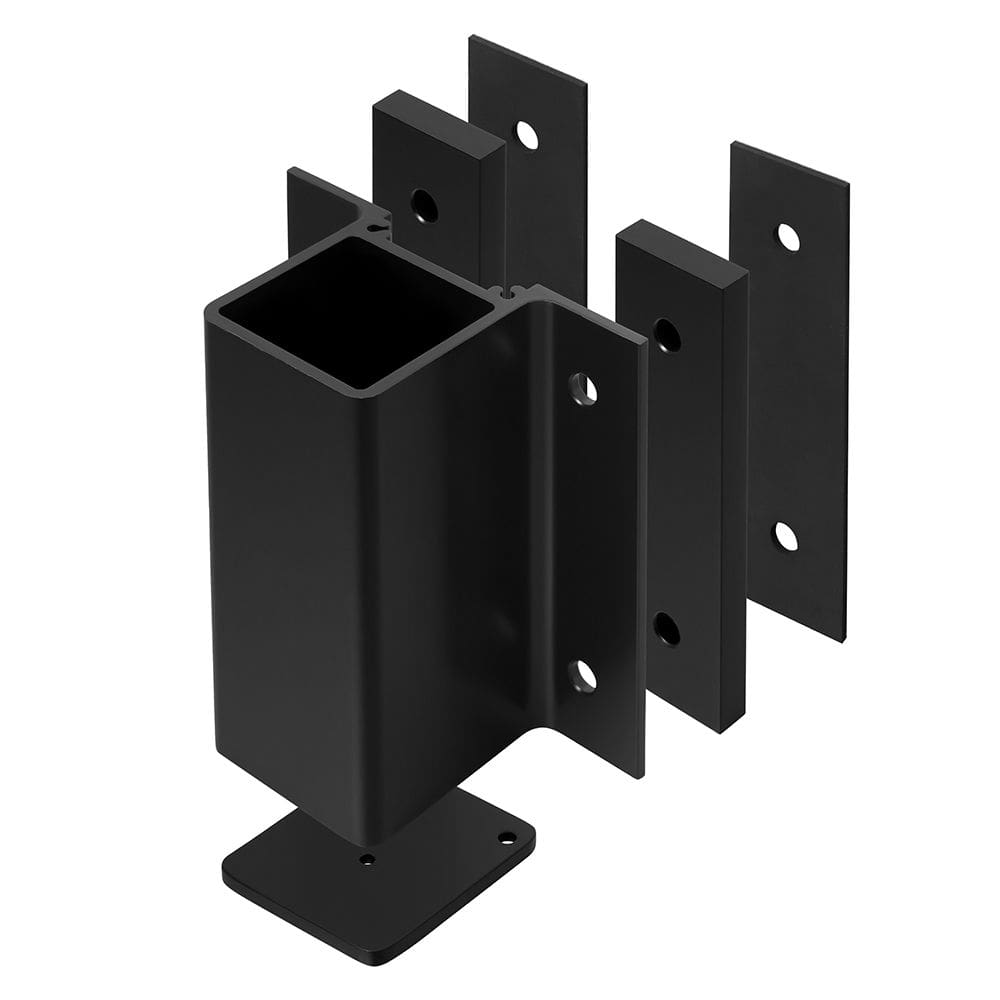

Inline Fascia Bracket

Description

Use these brackets to secure posts to the inline fascia (side) board of a deck or other surface. If the surface you are attaching the bracket to has a drip edge, you will need to order fascia brackets with shims for leveling. When securing posts to corners, use Outside Corner Fascia Brackets or Inside Corner Fascia Brackets. Post bracket spacing will vary depending on the dimensions of the project, but cannot exceed 5′. Call or email for measurement and post calculation assistance.

Features & Benefits:

• Engineered design for a seamless end result and long-lasting performance
• Tight radius corners soften edges while maintaining a distinctly sharp look
• Pressure diecast using ADC12 aluminum alloy for strength
• AAMA 2605 powder coated for durability with four color options
• System instructions included for DIY installation

Assembly Includes:

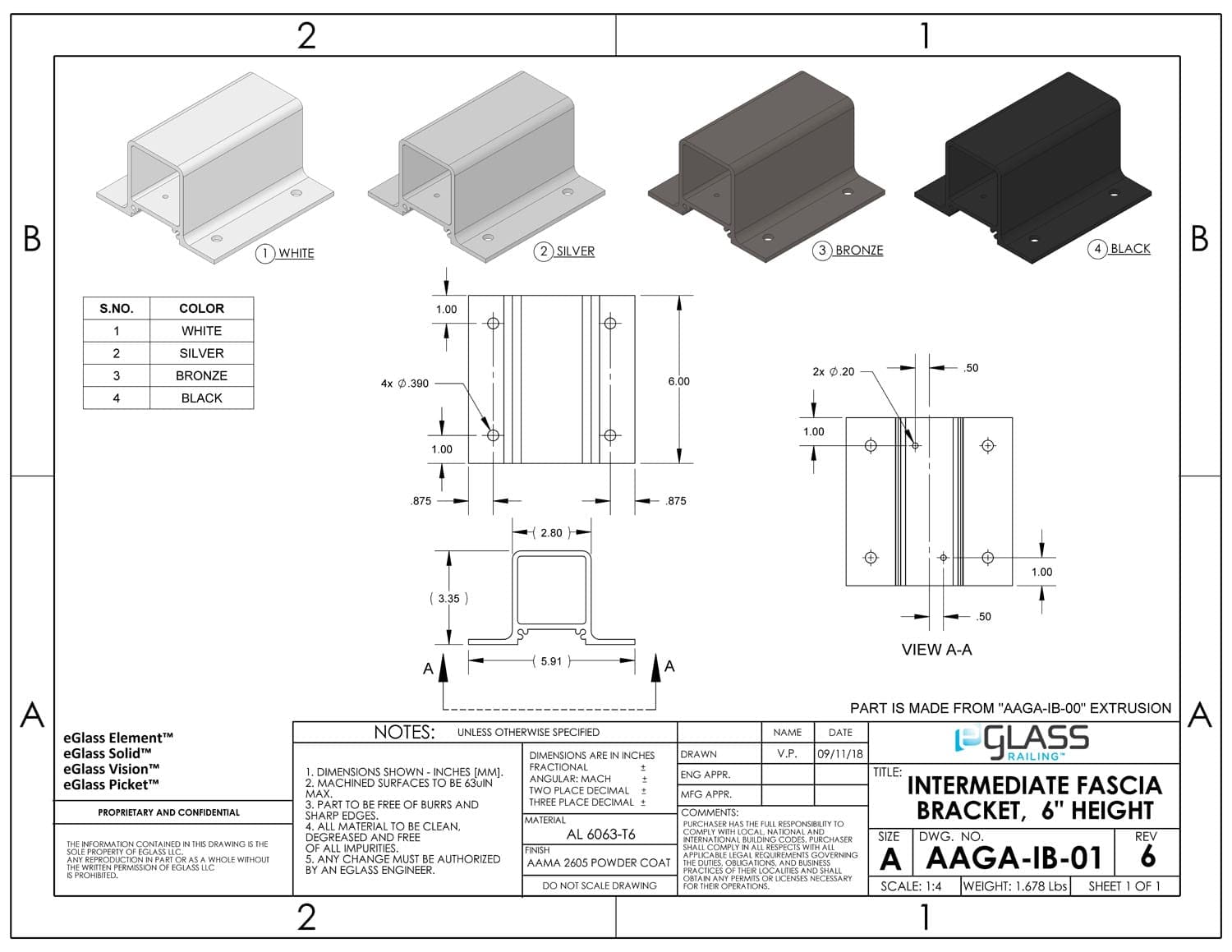

• 1ea FASCIA BRACKET

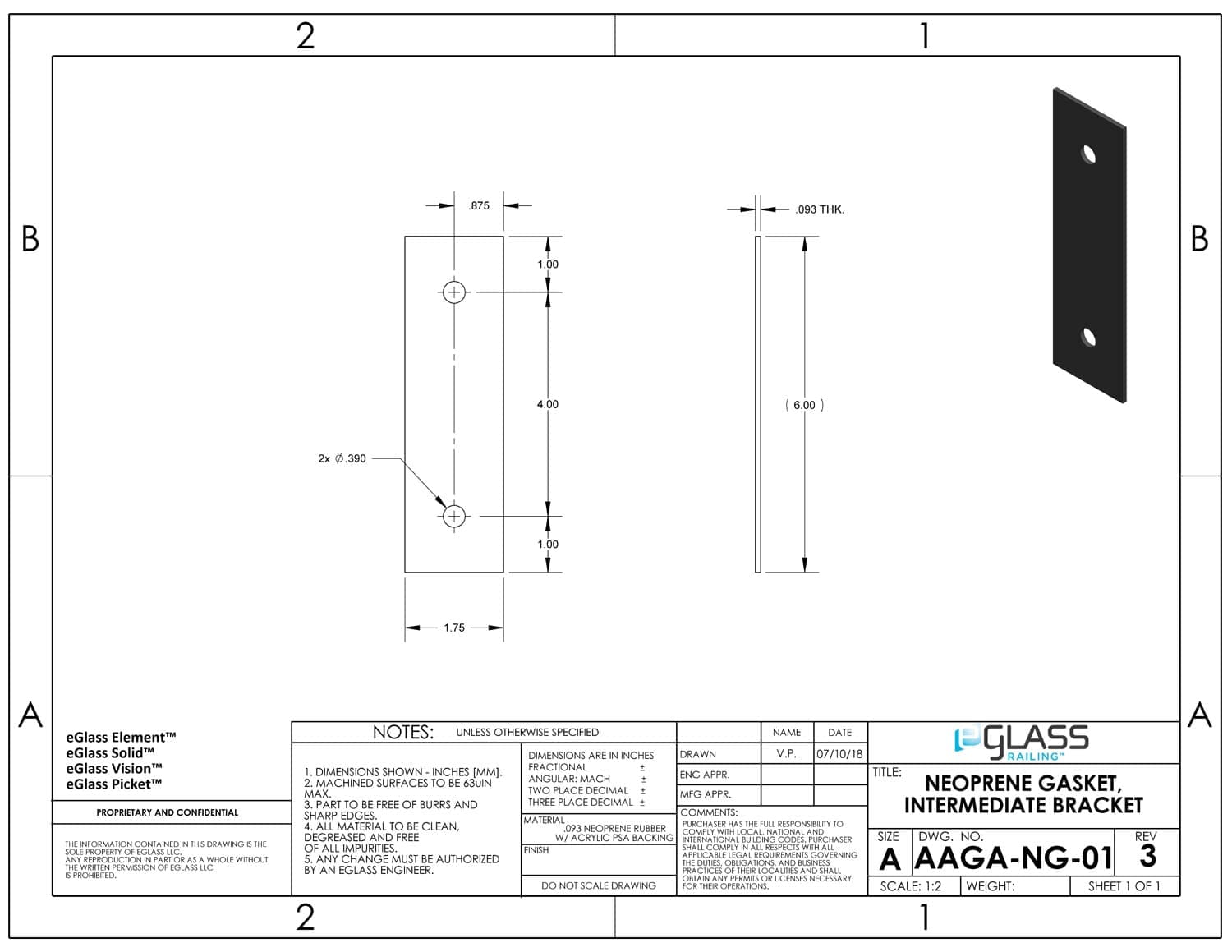

• 2ea NEOPRENE GASKET

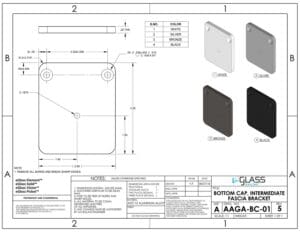

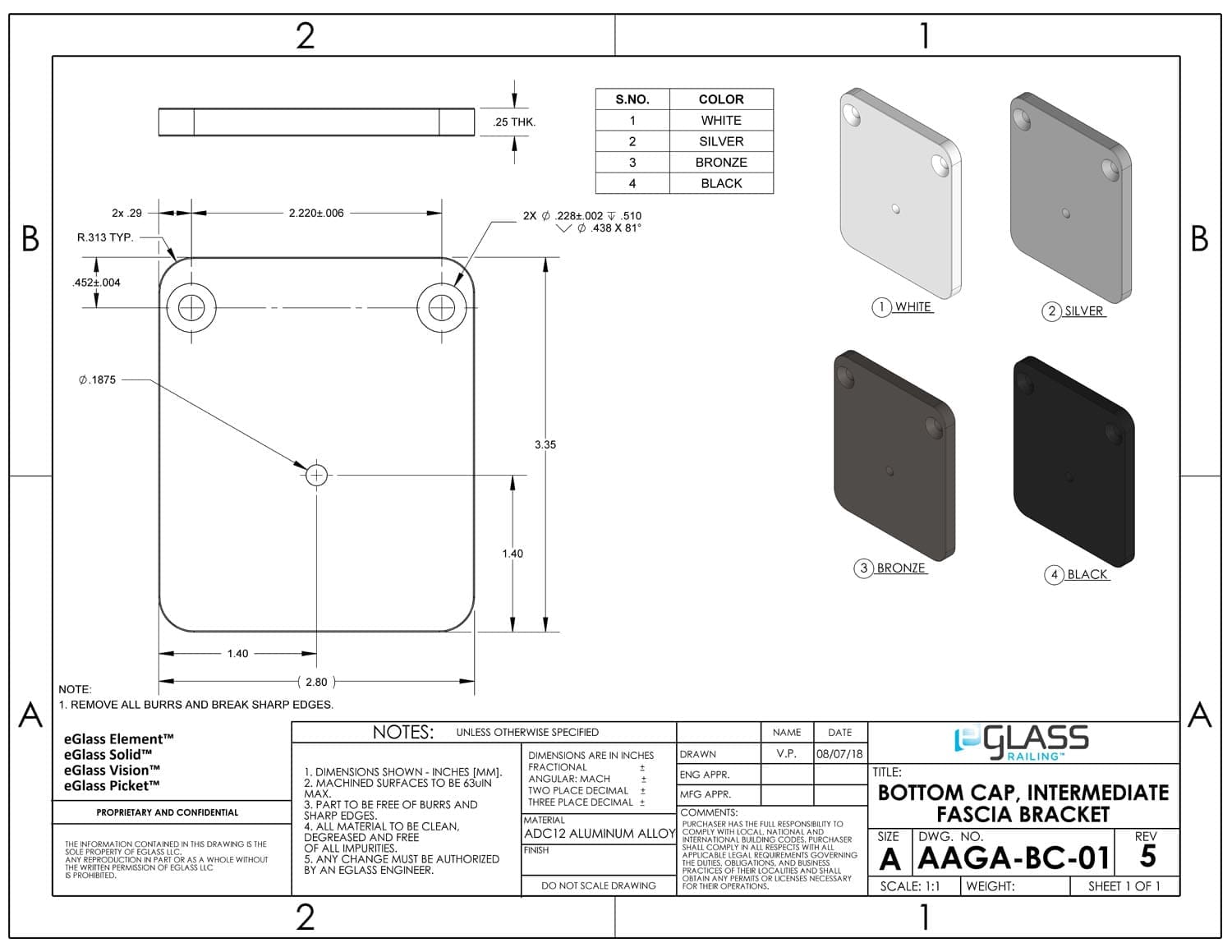

• 1ea BOTTOM CAP
• 2ea #12 x 1″ FLAT HEAD TF SCREWS
• 2ea 1/4-20 x 1″ FLAT HEAD TF SCREWS

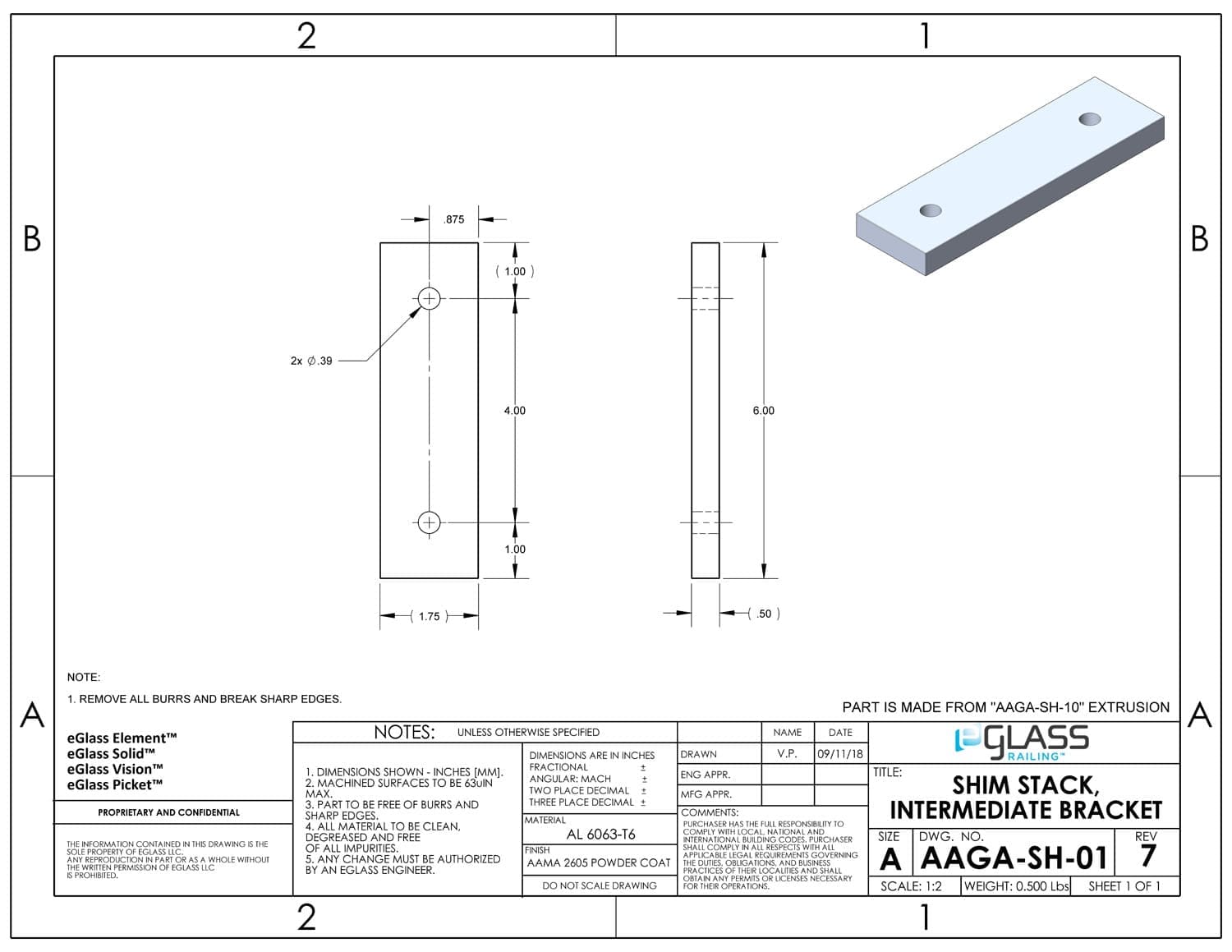

• 2ea SHIM STACK (optional for drip edge)

Product Number(s): PACK-IB-01, PACK-IB-02

Specifications
