Name: Glass Railing Post - 135 Degree
Brand: Stainless Cable & Railing™
SKU: glass-railing-post-135-degree-EG
Availability: InStock

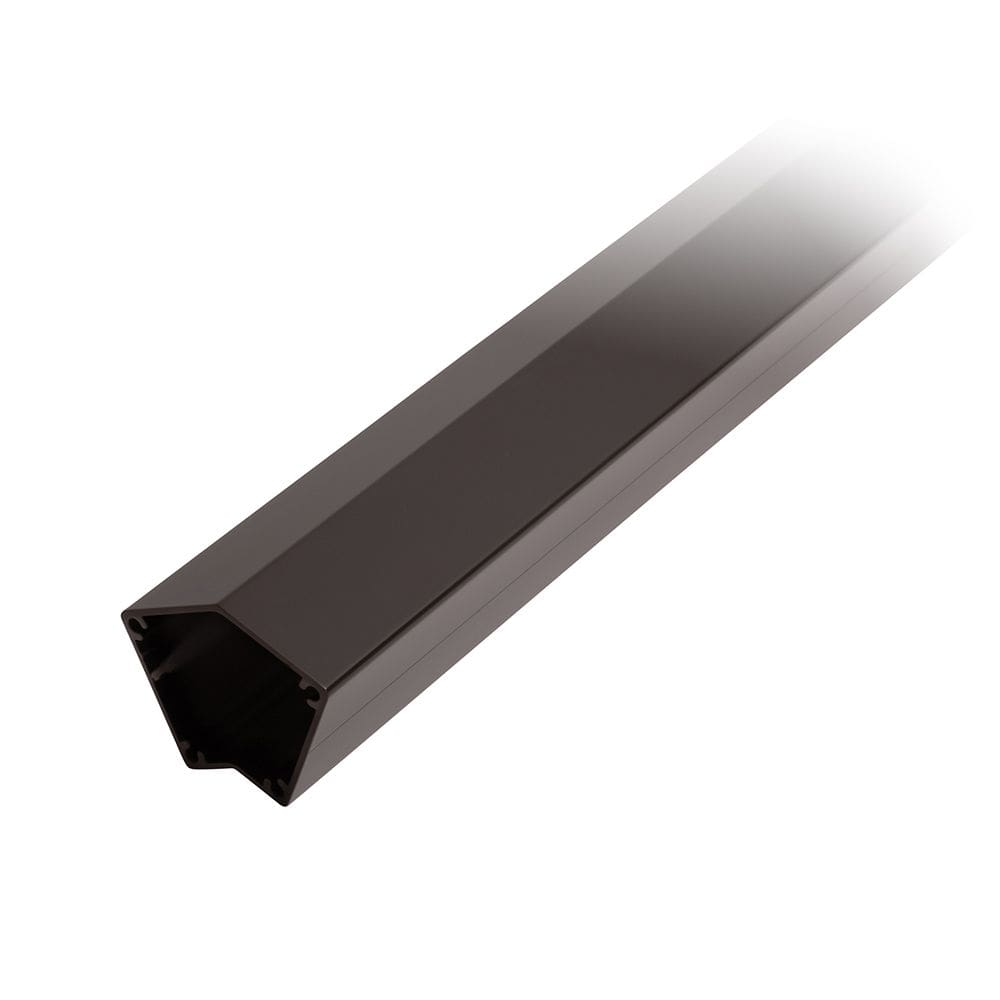

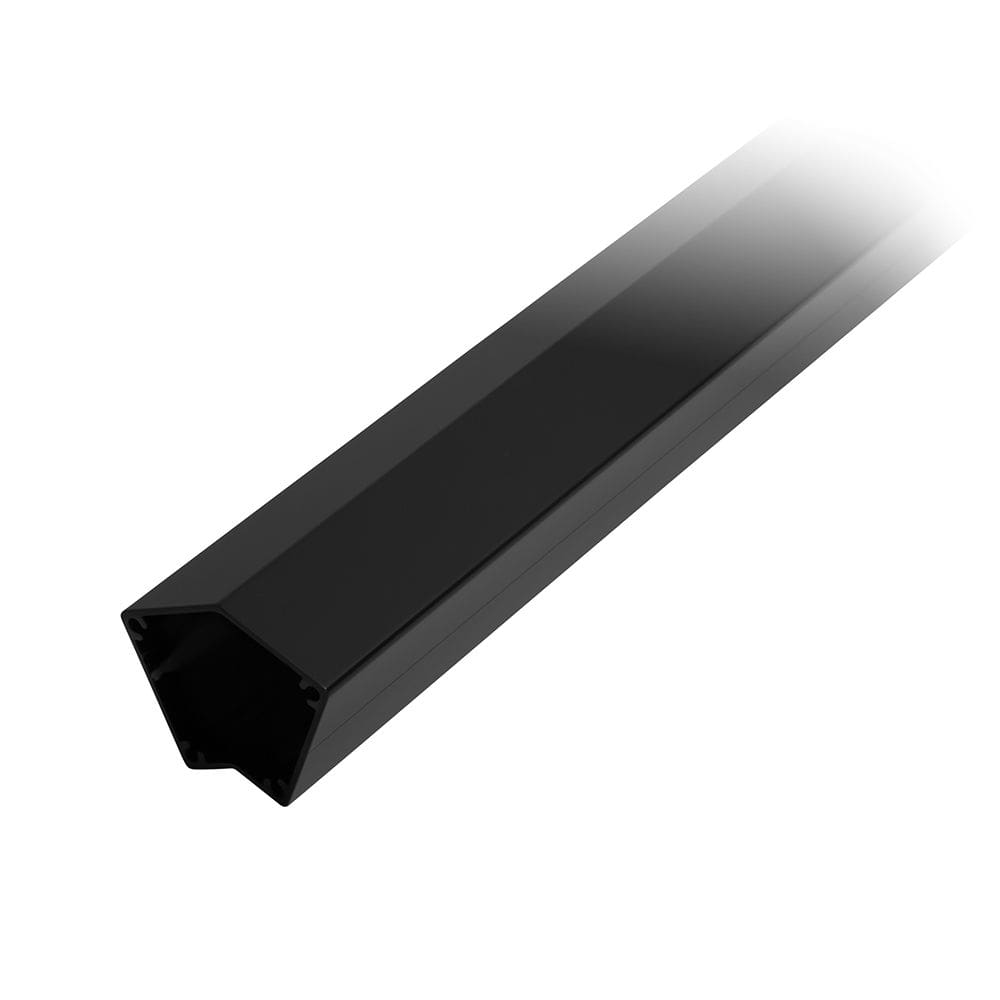

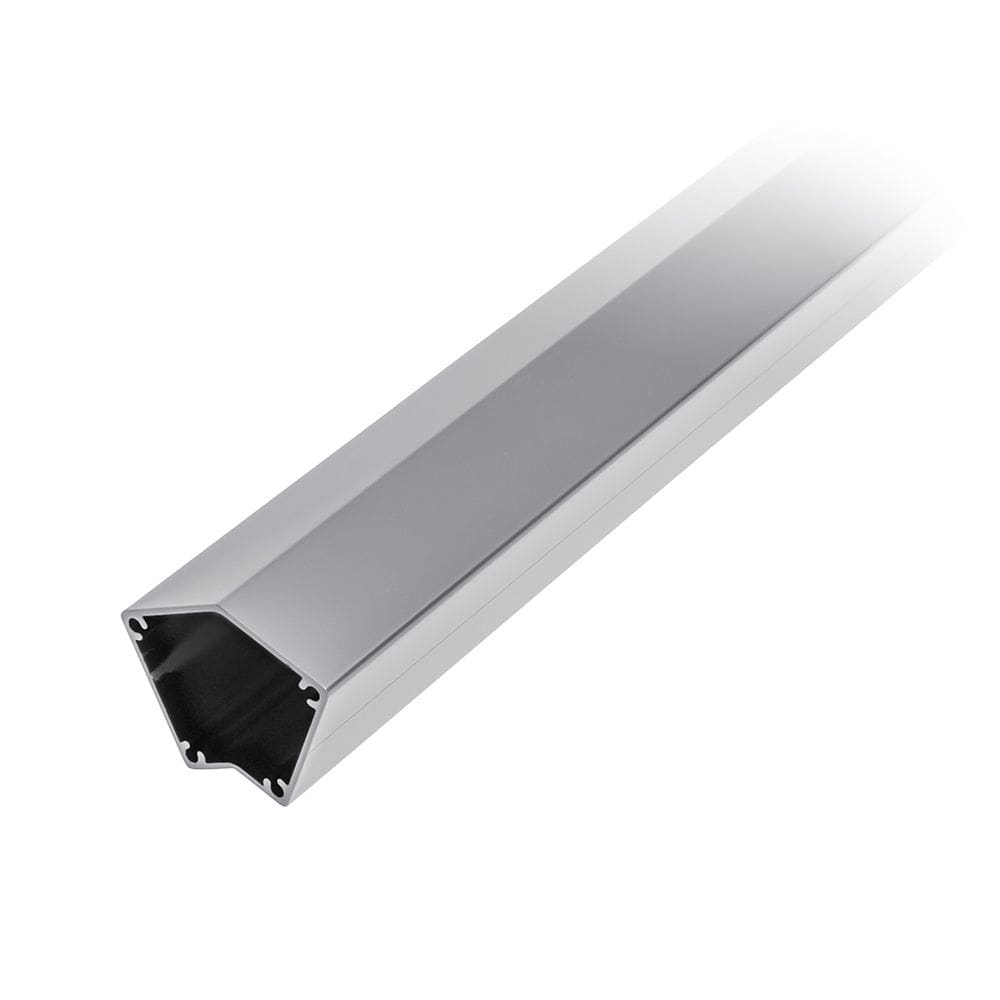

Glass Railing Post – 135 Degree

Use these posts for 135 degree corners for any of our deck mounted systems. Cannot be fascia mounted. Post spacing will vary depending on the dimensions of the project, but cannot exceed 5′. Call or email for measurement and post calculation assistance.

Part of these systems:

Element | Solid | Vision | Picket

Need help? Please call 1-888-686-7245.

Description

Features & Benefits:

Designed for 135 degree corners
Tight radius corners soften edges while maintaining a distinctly sharp look
Corners house internal screw chases for easy and invisible connection to other components
Made of 6061-T6 aluminum for strength and ease of installation
AAMA 2605 powder coated for durability with four color options
Available in one over-length size to be cut down as needed
System instructions and hole-drilling guides included for DIY installation

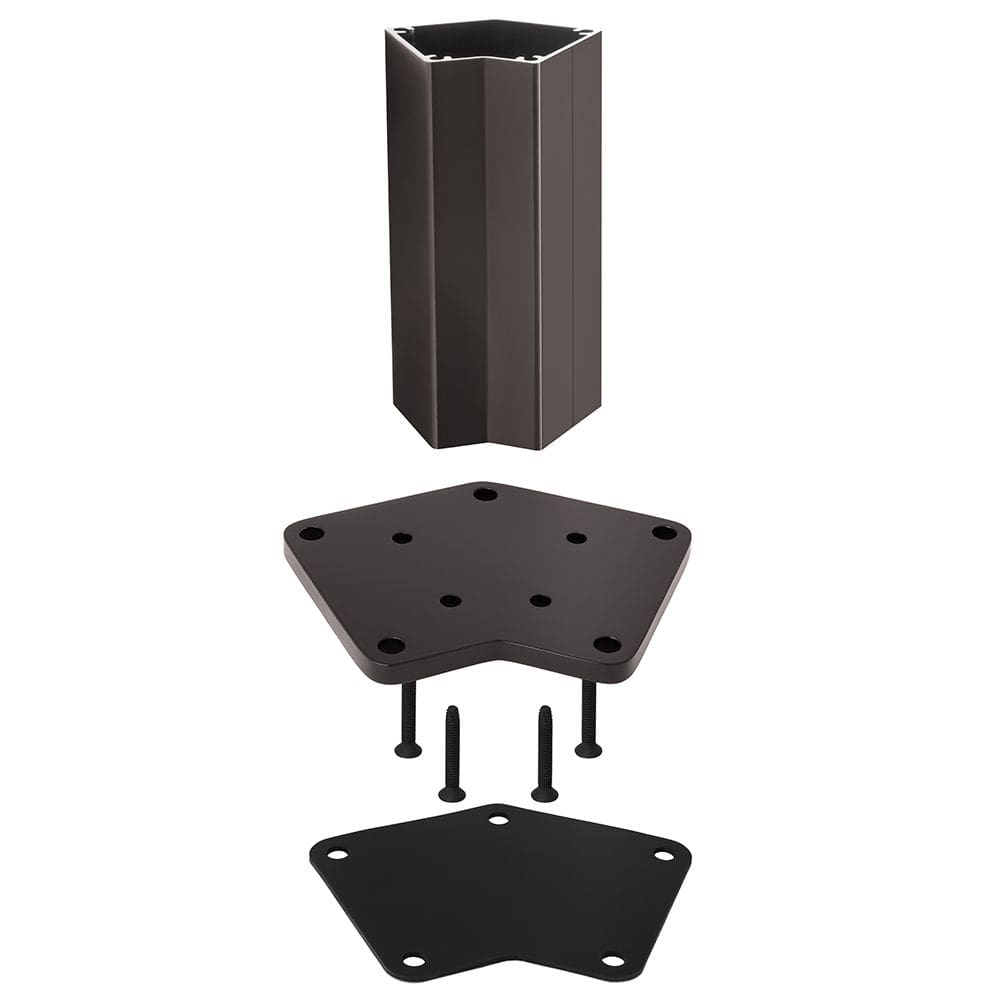

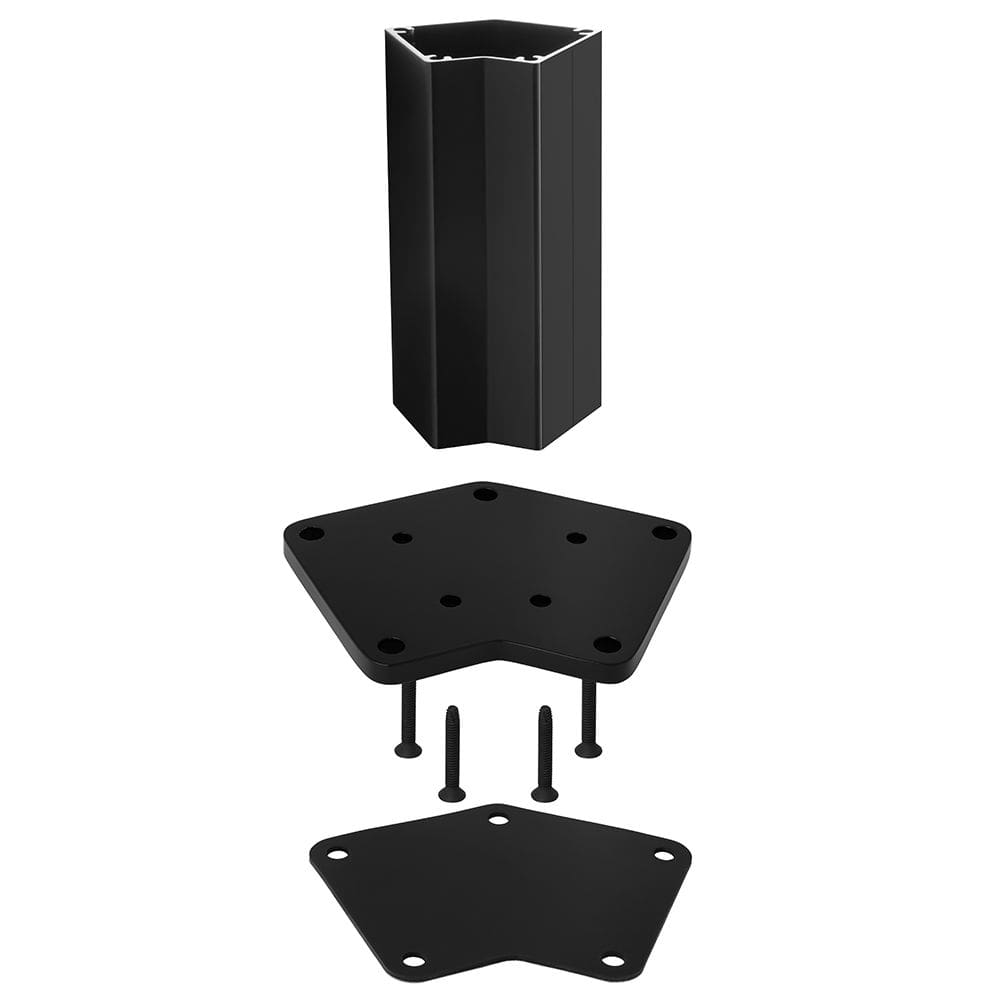

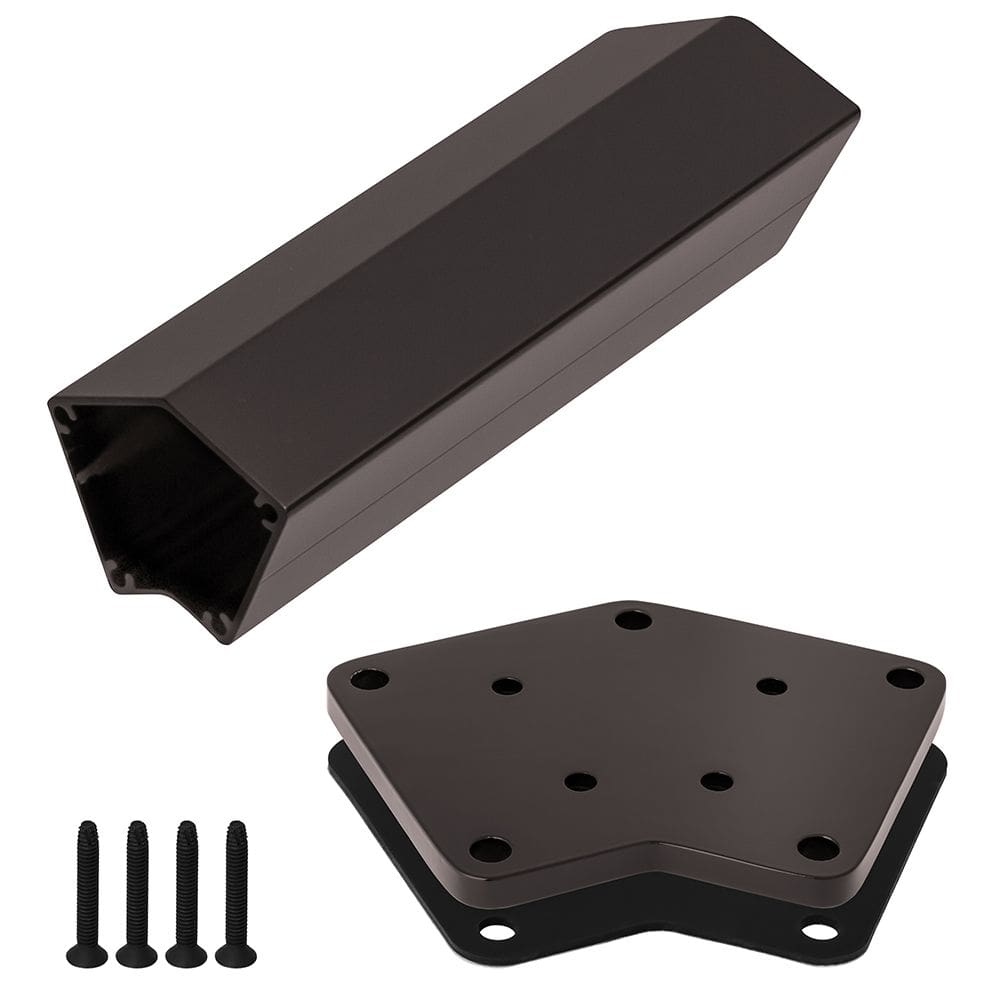

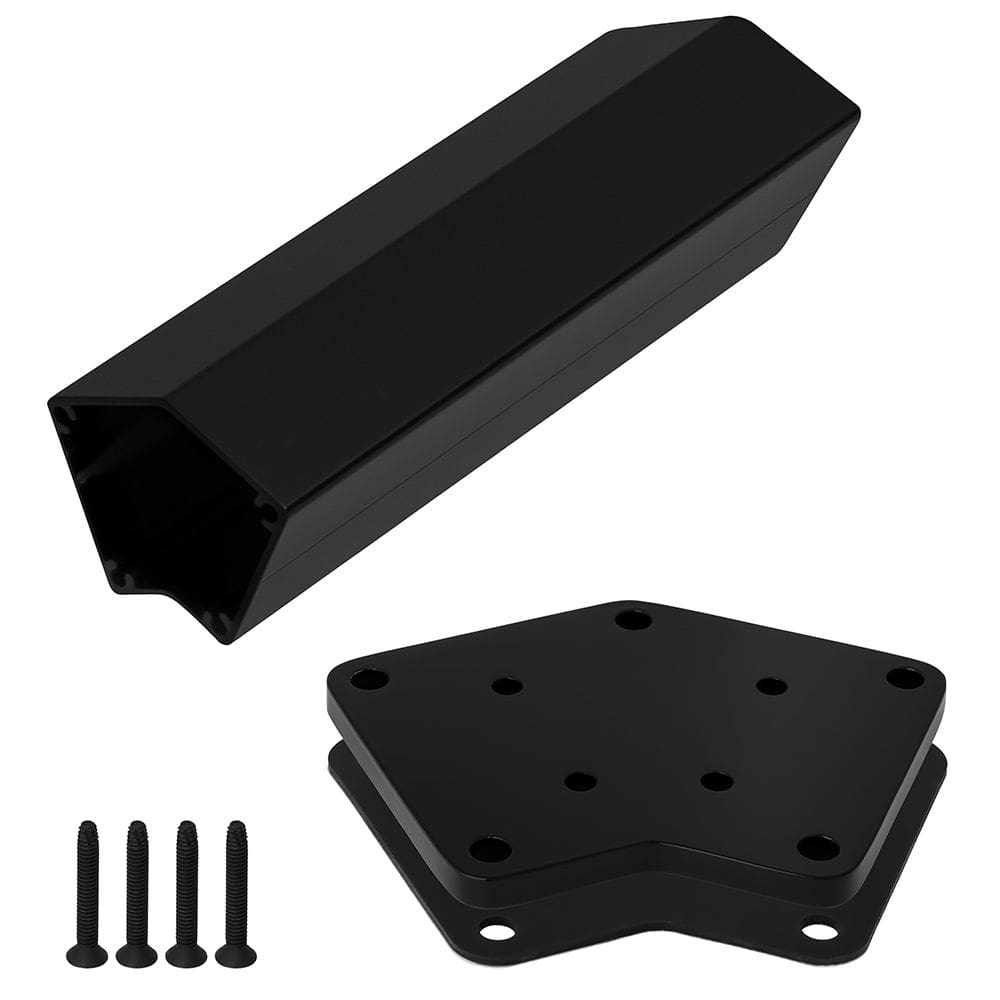

Assembly Includes:

1ea POST

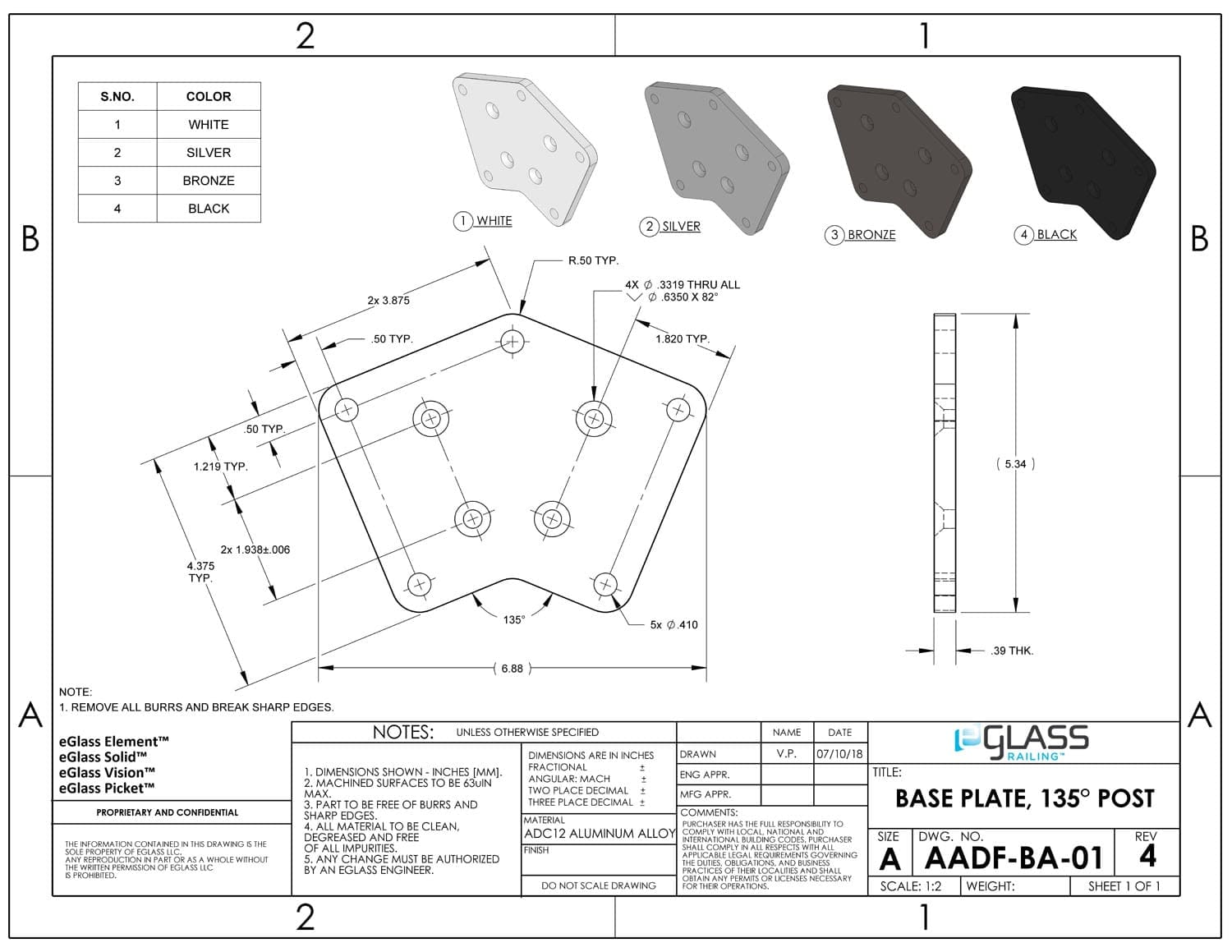

1ea BASE PLATE

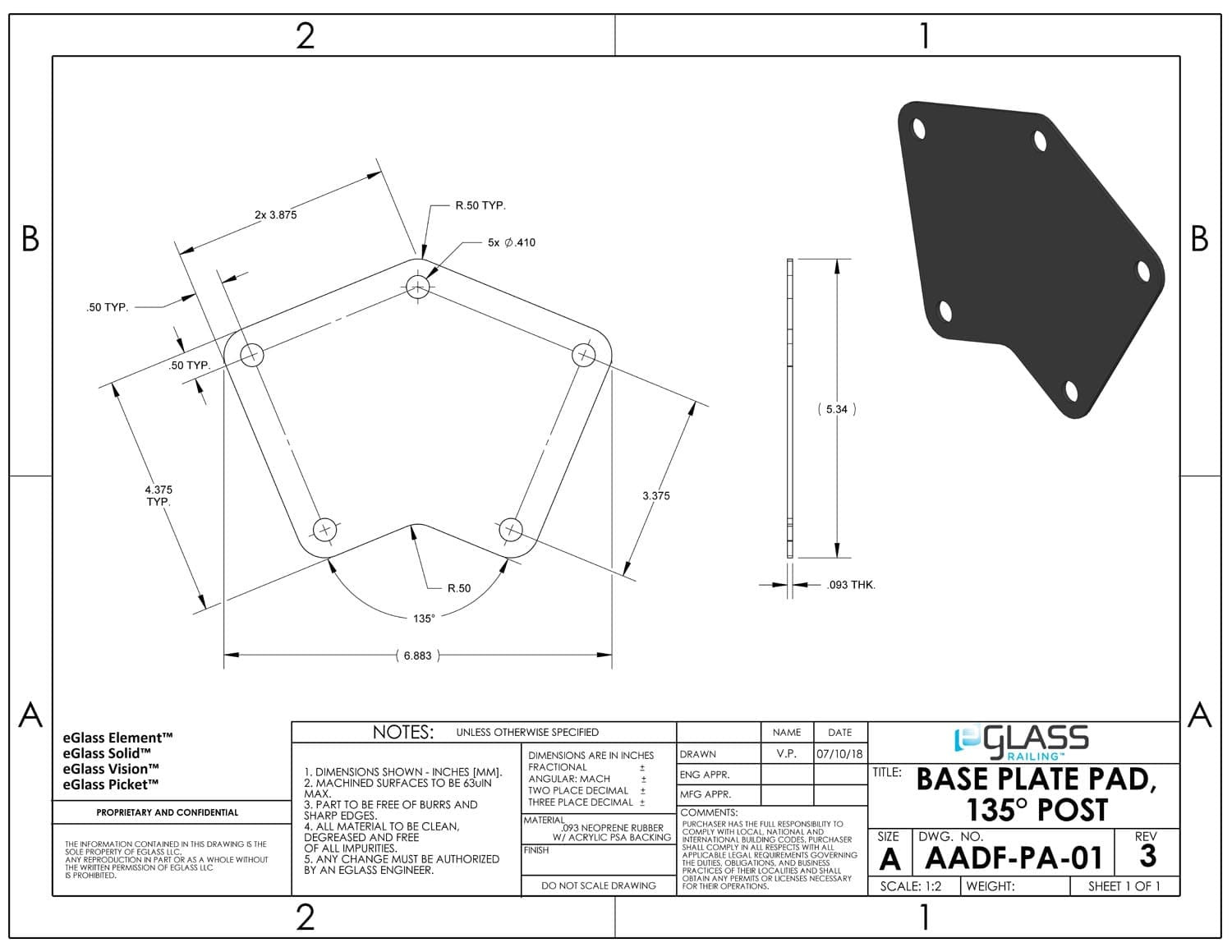

1ea NEOPRENE RUBBER BASE PAD
4ea 1/4-20 x 1.75″ FLAT HEAD TF SCREWS

PRODUCT NOTES

Length Note: Posts are shipped oversized and must be cut down on job site.

Hole Note: All posts are undrilled and shipped with easy-to-use template cards for on-site drilling.

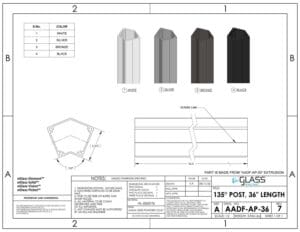

Product Number(s): PACK-AP-36, PACK-AP-48, PACK-AP-56

Specifications

Material	Finish	Color Options	Dimensions	Height Options	Warranty
AL 6061-T6 Alloy	AAMA 2605 Powder Coat	Black, Bronze, Silver, White	5.3″ x 6.9″ approximate	Any final rail height 56″ or shorter	10-year (5-year Florida)

Additional information

Color	Black, Bronze, White, Silver
