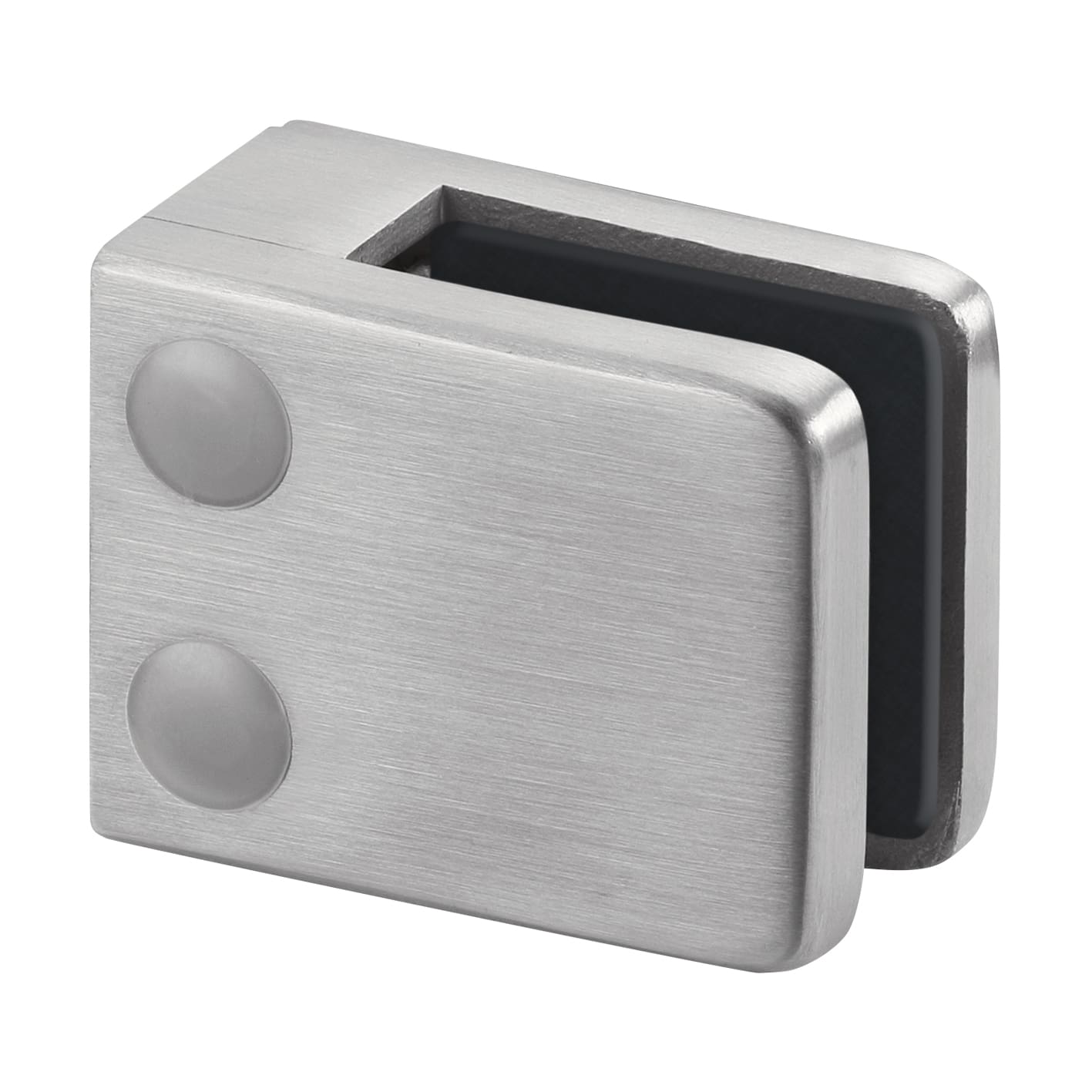

Square Glass Clamp – Fascia/Deck, Flat

Login to view prices

Use these square stainless steel glass clamps to attach glass panels securely to flat rectangular fascia or deck mount posts. Installation is made easy by simply tightening the screws on the glass clamps. Glass clamps are lined with rubber pads to grip the glass securely. Can be used for either deck or fascia mount projects. For fascia mount projects, install the two lower clamps so that the glass rests on the security plate at the bottom of each glass clamp. These security plates are included to prevent glass from slipping out of the clamps in the case of a fire. Call or email for ordering assistance.

Includes:
4ea glass clamps

Ships in 3-5 Days
Part#: 14421000012

Need help? Please call 1-888-686-7245.

SKU: q-railing-glass-clamp-square-flat-reception-fascia-deck-mount-EG Category:

Description

Use these square stainless steel glass clamps to attach glass panels securely to flat rectangular fascia or deck mount posts. Installation is made easy by simply tightening the screws on the glass clamps. Glass clamps are lined with rubber pads to grip the glass securely. Can be used for either deck or fascia mount projects. For fascia mount projects, install the two lower clamps so that the glass rests on the security plate at the bottom of each glass clamp. These security plates are included to prevent glass from slipping out of the clamps in the case of a fire. Call or email for ordering assistance.

Features & Benefits:

  • Can be used for either deck mount or fascia mount posts
  • Has a security plate to secure glass in a fascia mount system
  • For use with 3/8” glass panels
  • Engineered for the specific width of glass panels, no adjustment necessary
  • Made from 316 grade stainless steel for superior corrosion resistance and durability

Assembly Includes:

  • 4ea GLASS CLAMP
  • 8ea SCREWS WITH LOCTITE THREAD SEALANT

PRODUCT NOTES

Glass Clamp Note: This glass clamp can be used with either deck mount or fascia mount posts. Use the included bottom plate for fascia mount installations.

Glass Note: Minimum glass thickness is 3/8″ tempered.

Product Number(s): 14.4210.000.12

Specifications

Material Finish Dimensions
316 Grade Stainless Steel Satin 1.77″H x 2.24″W x 1.10″D
