Name: Rail Connecting Block Kit
Brand: Stainless Cable & Railing™
SKU: glass-railing-rail-connecting-block-EG
Availability: InStock

Rail Connecting Block Kit

Use the Inline Rail Connecting Blocks to securely attach eGlass Element™ and eGlass Picket™ top rails and bottom rails to posts, as well as bottom rails in the eGlass Solid™ system.

For Bottom Rails & 800 Series Top Rail Only. NOT compatible with 810 or 820 Series Top Rails.

Part of these systems:

Element | Solid | Picket

Need help? Please call 1-888-686-7245.

SKU: glass-railing-rail-connecting-block-EG Category: Uncategorized

Description

Use the Inline Rail Connecting Blocks to securely attach eGlass Element™ and eGlass Picket™ top rails and bottom rails to posts, as well as bottom rails in the eGlass Solid™ system.

For Bottom Rails & 800 Series Top Rail Only. NOT compatible with 810 or 820 Series Top Rails.

Features & Benefits:

Made of 6061-T6 aluminum for strength
Securely holds our bottom rails and 800 Series top rails
System instructions included for DIY installation

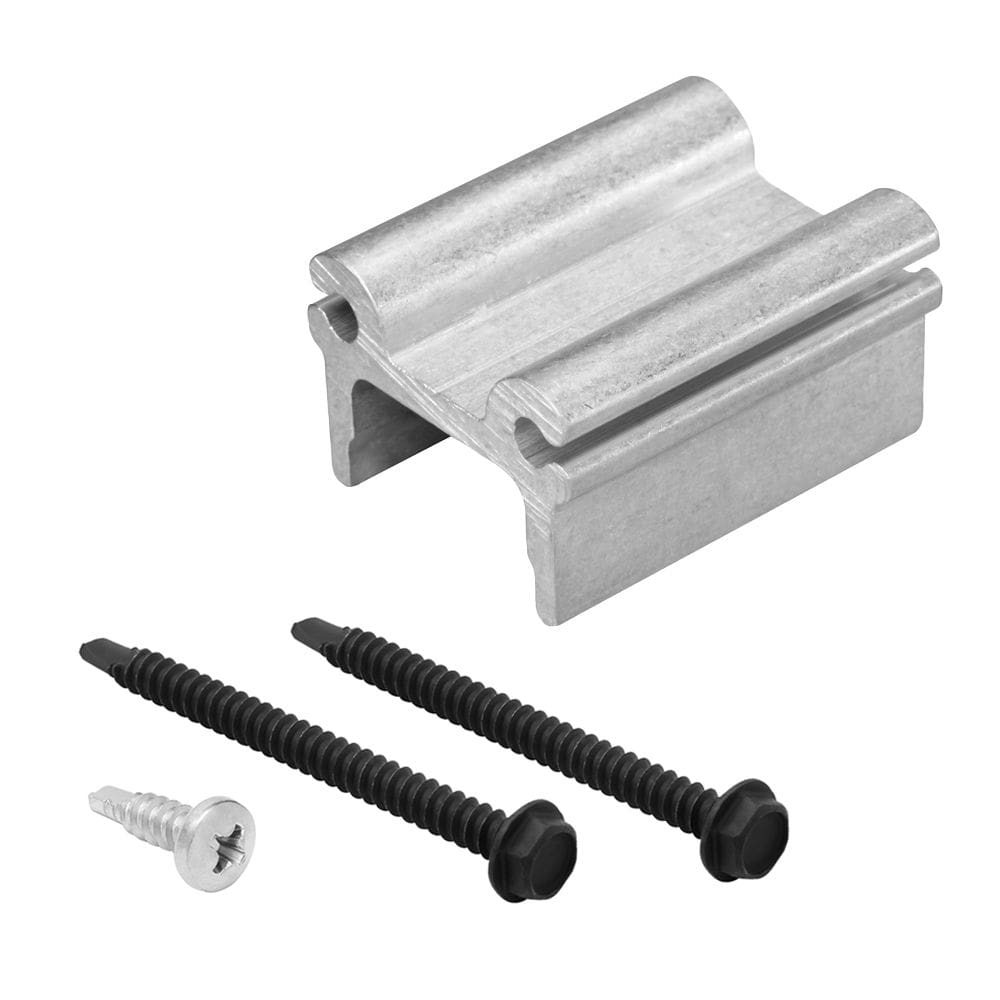

Inline RCB Assembly Includes:

1ea 1.5″ RAIL CONNECTING BLOCK
2ea #8 x 2″ HEX WASHER TEK SCREW
1ea #8 x 7/16″ PH TEK SCREWS (for top rail) OR #8 x 9/16″ PH TEK SCREWS (for bottom rail)

Stair RCB Assemblies Include:

1ea 1′ RAIL CONNECTING BLOCK (makes 4 stair RCBs)
8ea #8 x 2″ HEX WASHER TEK SCREW
4ea #8 x 7/16″ PH TEK SCREWS (for top rail) OR #8 x 9/16″ PH TEK SCREWS (for bottom rail)
2ea VINYL GLASS STOPPERS

Product Number(s): PACK-RC-01, PACK-RC-02, PACK-RC-03, PACK-RC-04, PACK-RC-05, PACK-RC-06

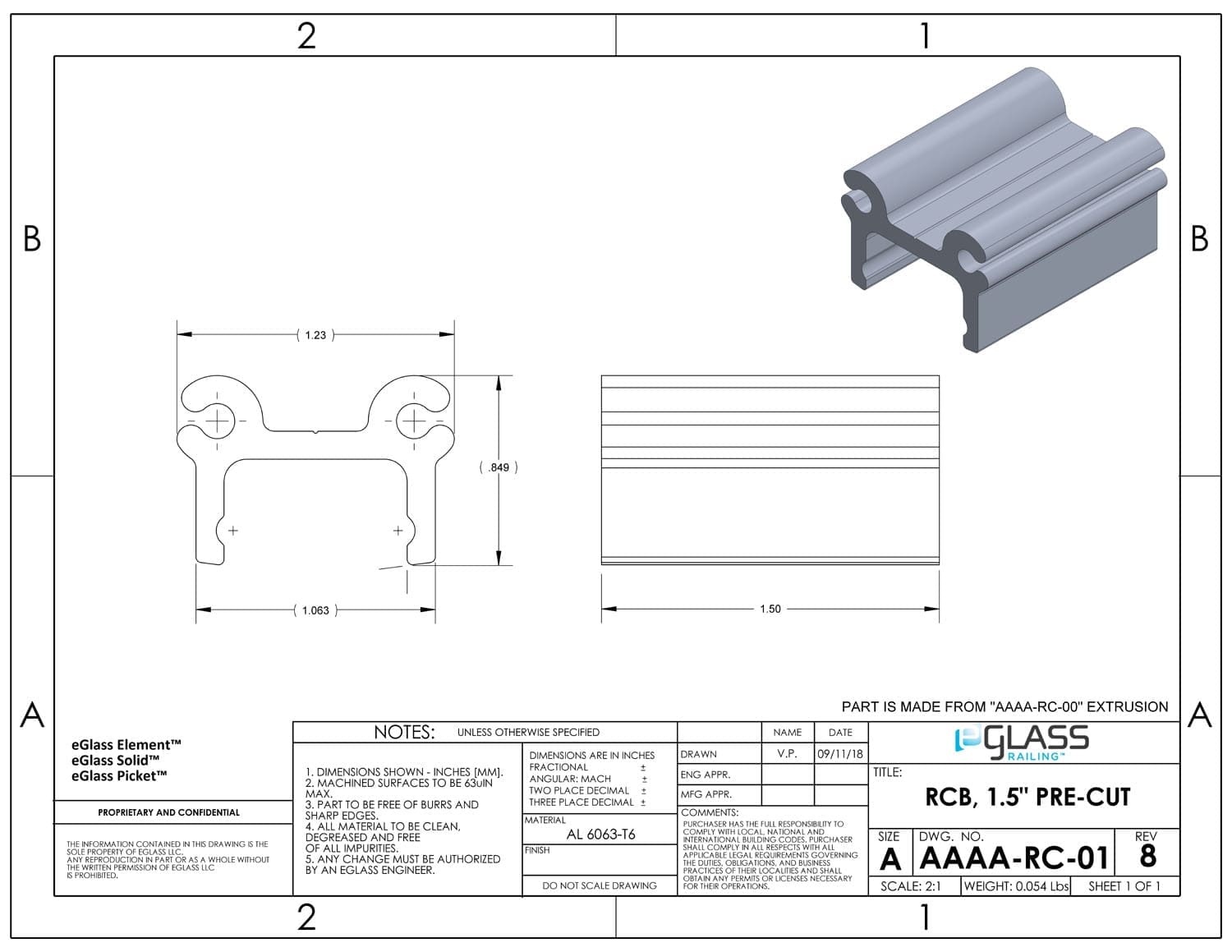

Specifications

Material	Dimensions	Warranty
AL 6005-T5 Alloy	1.25″ x 1″	10-year (5-year Florida)

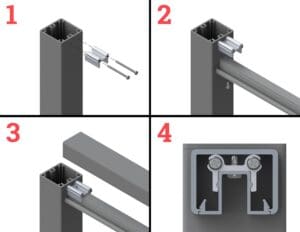

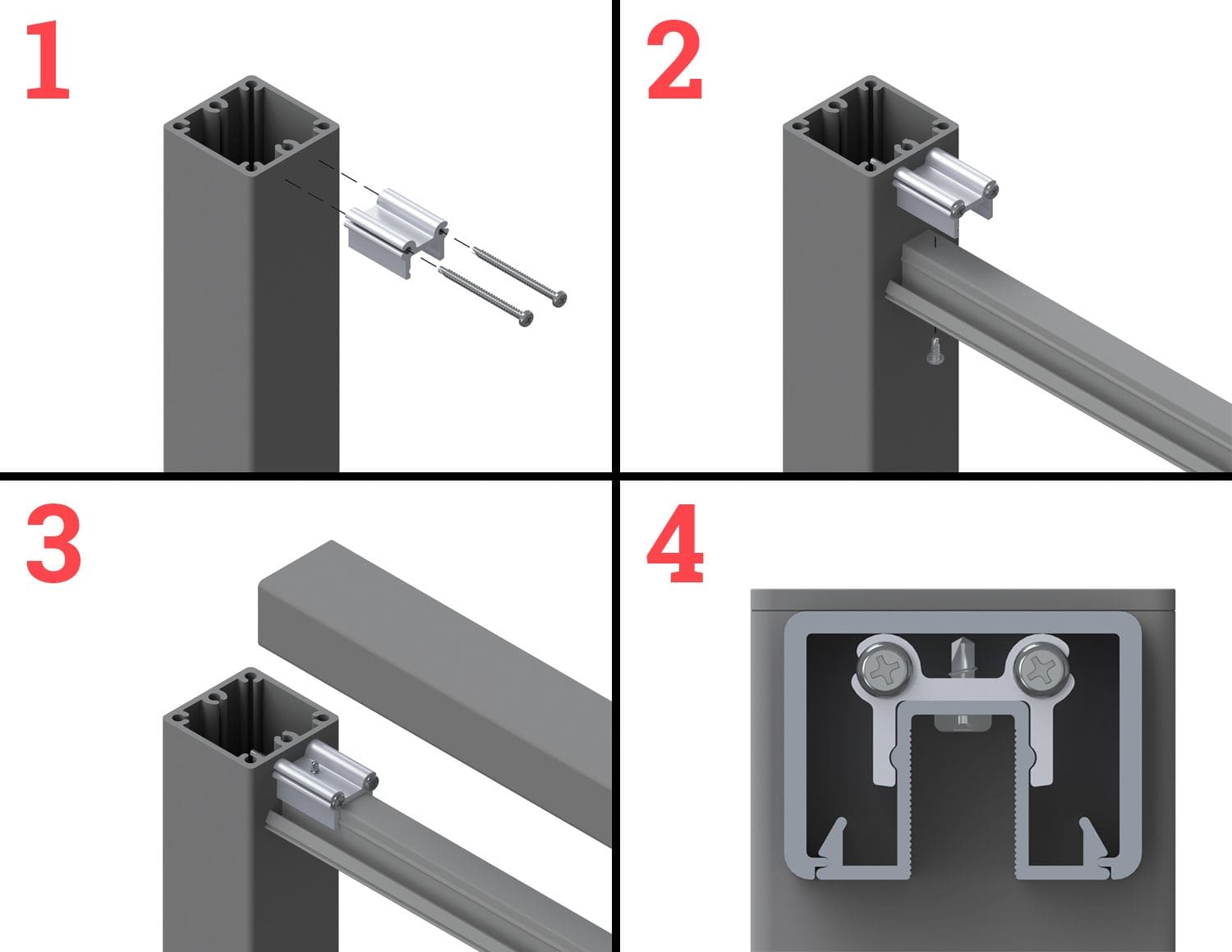

Full Application Images: Stair RCB Installation & Stair Top Rail Installation for Picket

Questions? 1-888-686-7245 · Contact us

Additional information

Length	1.5in (1 inline RCB), 1ft (makes 4 stair RCBs) for 1/4in Glass, 1ft (makes 4 stair RCBs) for 3/8in Glass
Rail-type	Bottom Rail, Top Rail
