Name: Link Handrail End Loop
Brand: Stainless Cable & Railing™
SKU: glass-railing-handrail-loop-EG
Availability: InStock

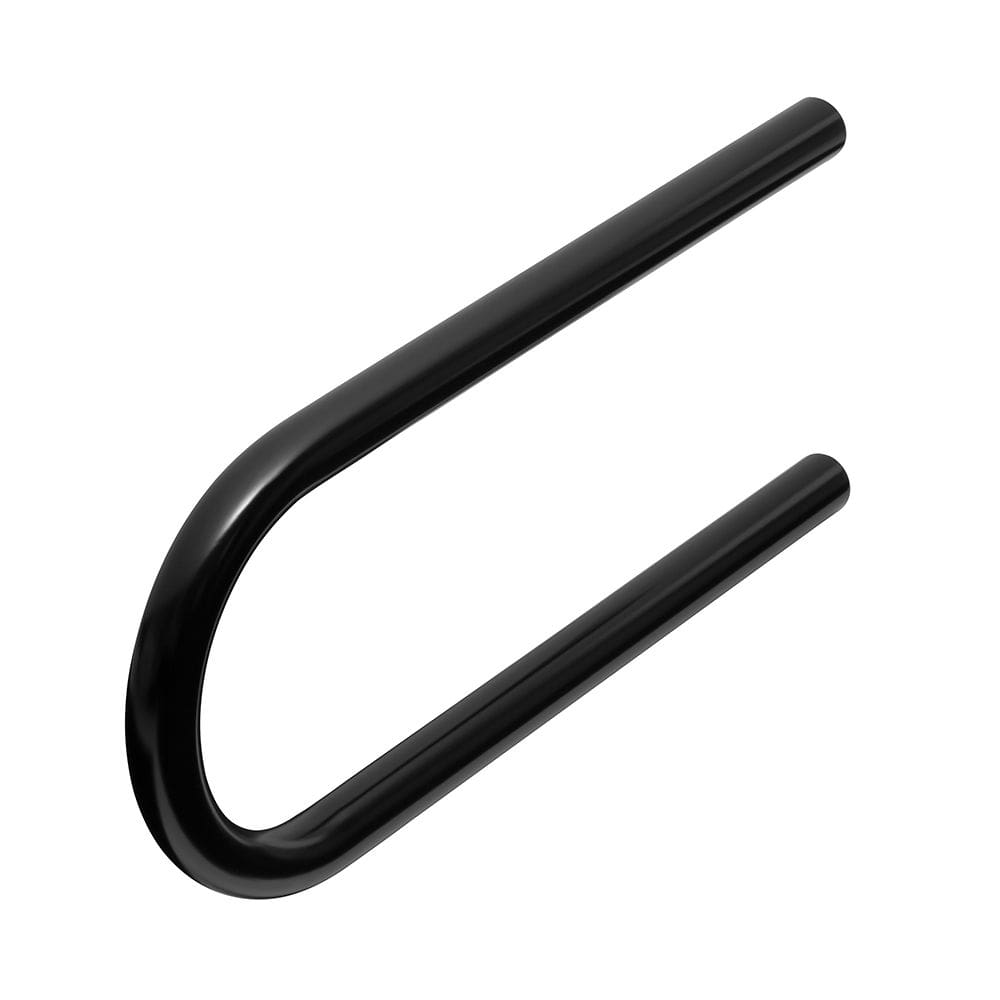

Link Handrail End Loop

This end loop (or handrail return) will make any Link Handrail™ ADA-Compliant by offering additional support down stair sections.

Part of these systems:

Element | Solid | Vision | Picket

Need help? Please call 1-888-686-7245.

Description

This end loop (or handrail return) will make any Link Handrail™ ADA-Compliant by offering additional support down stair sections.

Features & Benefits:

Compatible with any of our systems
Easy to grasp shape that handles changes in direction well
Simple installation; just apply epoxy and connect the pieces
Made of 6061-T6 aluminum for strength and ease of installation
AAMA 2605 powder coated for durability
Available in our standard four powder coat colors, plus custom colors upon request
System instructions provided for DIY installation

Assembly Includes:

1ea END LOOP

Product Number(s): HDRL-LK-31

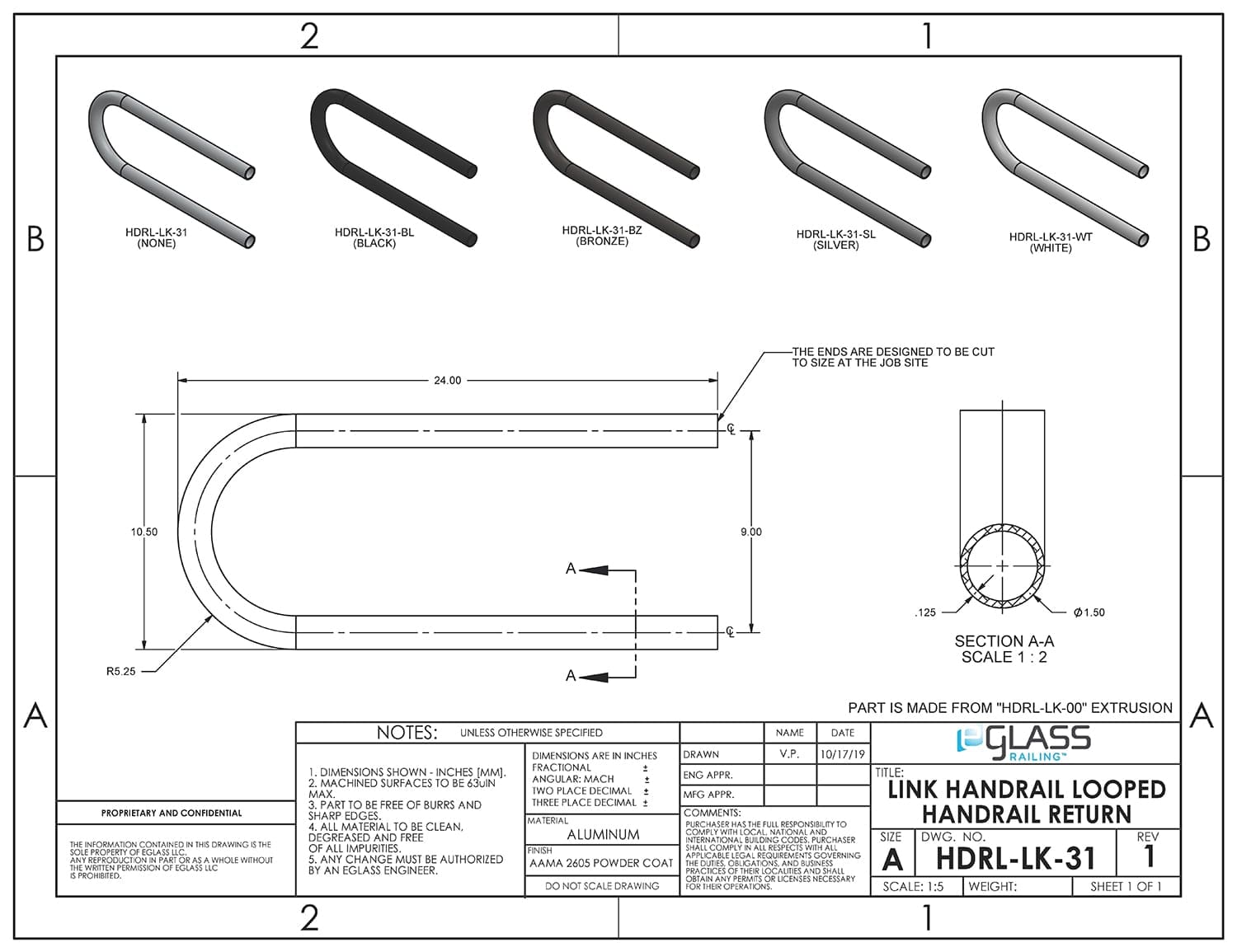

Specifications

Material	Finish	Color Options	Dimensions	Warranty
AL 6061-T6 Alloy	AAMA 2605 Powder Coat	Black, Bronze, Silver, White, Custom	1.5in OD Tubing; 10.5in x 24in loop	10-year (5-year Florida)

Questions? 1-888-686-7245 · Contact us

Additional information

Color	Black, Bronze, White, Silver
