Name: Link Handrail Bracket
Brand: Stainless Cable & Railing™
SKU: glass-railing-handrail-bracket-EG
Availability: InStock

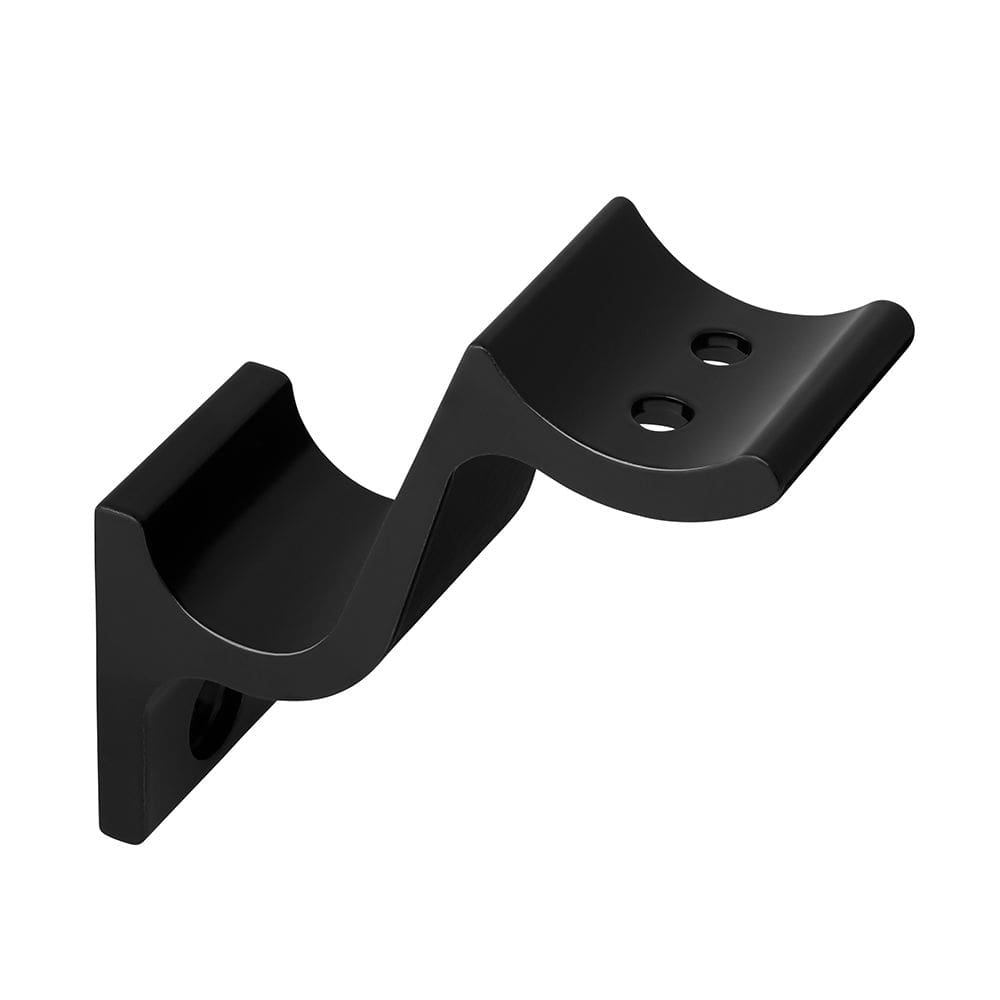

Link Handrail Bracket

Attach your Link Handrail™ to a wall or square posts using these saddle brackets. Handrail brackets should be spaced no more than 4ft apart.

Part of these systems:

Element | Solid | Vision | Picket

Need help? Please call 1-888-686-7245.

Description

Attach your Link Handrail™ to a wall or square posts using these saddle brackets. Handrail brackets should be spaced no more than 4ft apart.

Features & Benefits:

Compatible with any of our systems
Easy to grasp shape that handles changes in direction well
Simple installation; just apply epoxy and connect the pieces
Made of 6061-T6 aluminum for strength and ease of installation
AAMA 2605 powder coated for durability
Available in our standard four powder coat colors, plus custom colors upon request
System instructions provided for DIY installation

Assembly Includes:

1ea LINK HANDRAIL SADDLE BRACKET
1ea #12 x 2″ PHILLIP FLAT HEAD 316 SCREW
3ea 12-24 x 1″ PHILLIP FLAT HEAD 316 TF SCREW

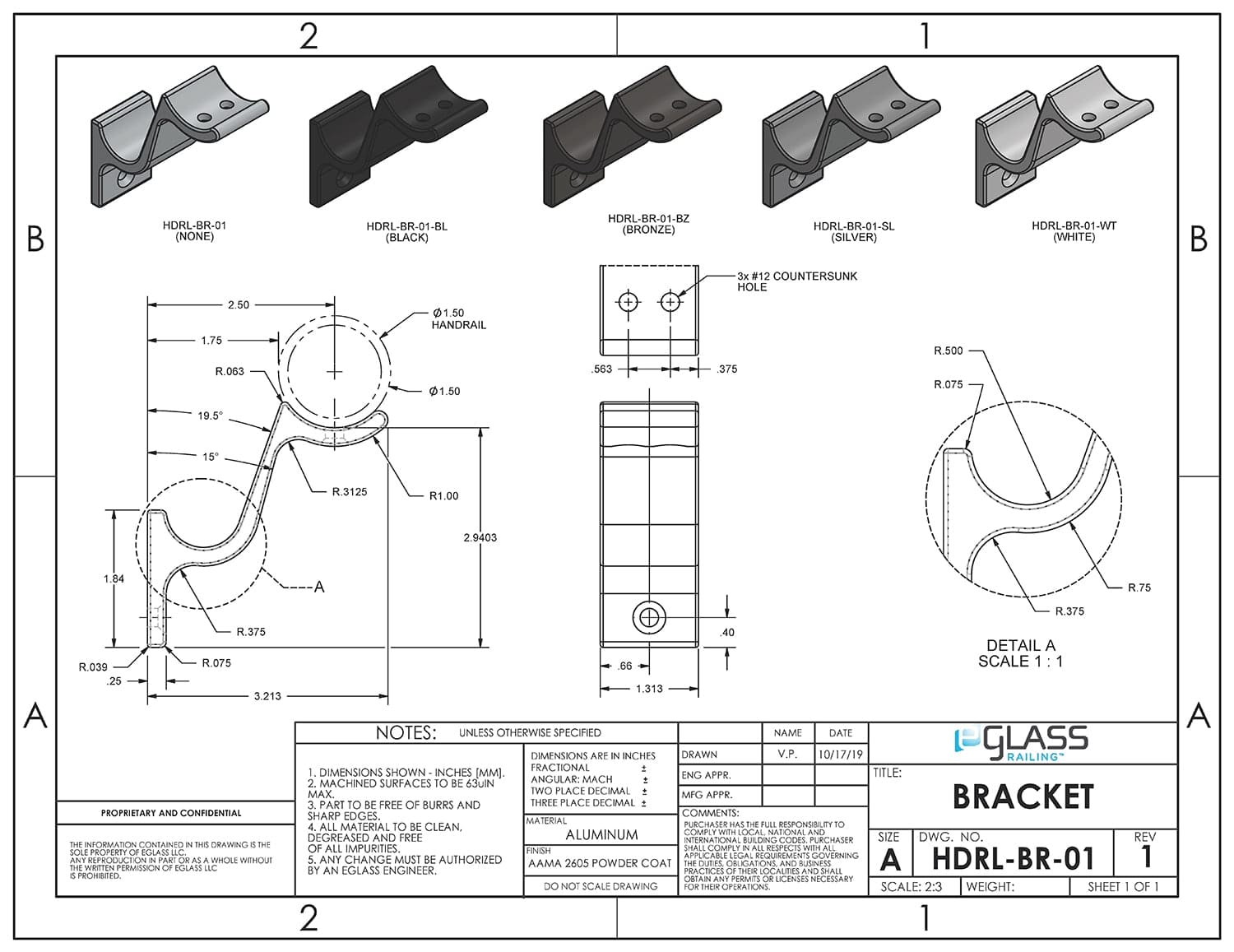

Product Number(s): HDRL-BR-01

Specifications

Material	Finish	Color Options	Dimensions	Warranty
AL 6061-T6 Alloy	AAMA 2605 Powder Coat	Black, Bronze, Silver, White, Custom	1.31in width, 3in height	10-year (5-year Florida)

Questions? 1-888-686-7245 · Contact us

Additional information

Color	Black, Bronze, White, Silver

Reviews

There are no reviews yet.

Be the first to review “Link Handrail Bracket”
